Abus D10+KD10NP Cylinder Set Keyed Alike Emergency Function Nickel Pearl EN 1303 Cl.5.2

Product Overview

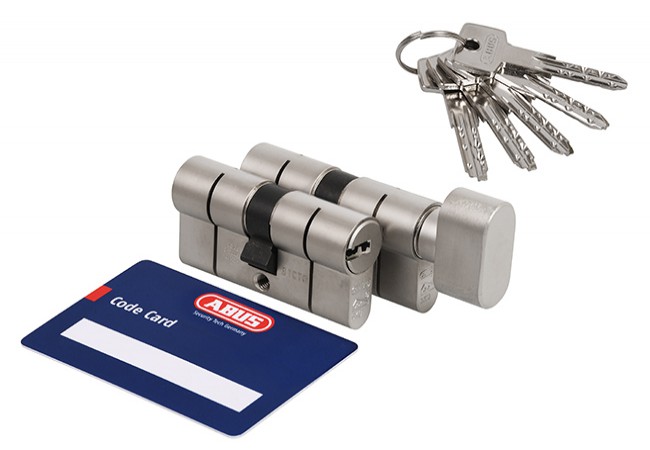

The Abus D10+KD10NP cylinder set includes a double-sided cylinder and a thumb-turn cylinder, both keyed alike for streamlined access control in residential and commercial buildings. This anti-burglary cylinder system is certified to PN-EN 1303:2007, delivering high resistance against forced entry, corrosion, and manipulation, with durability tested for at least 50,000 cycles. The set features a robust nickel pearl finish and is compatible with all mortise locks.

A standout feature is the integrated emergency function (safe coupling), allowing the cylinder to operate even if a key is inserted from the opposite side. This significantly reduces the risk of lockouts in multi-user environments, ensuring uninterrupted access for facilities managers or occupants. Such functionality makes this product ideal for bulk procurement in property management, hotels, office complexes, and residential developments requiring elevated security and operational reliability.

Key Features

• Emergency function ? cylinder can be operated with a key on both sides, preventing lockouts


• 10-pin mechanism ? 100,000 key combinations for advanced security key protection (class 5)


• Pre-snap protection ? increases resistance against breaking of the cylinder under forced attack


• Anti-drilling protection ? hardened steel components guard against drilling attempts


• Corrosion resistance class C ? operates reliably from -20°C to +80°C for outdoor or humid environments


• Anti-picking patented system ? specialized pins and counter-pins minimize risk of lock manipulation


• Tested for 50,000 cycles ? high mechanical durability for intensive everyday use

Technical Specifications

• Cylinder Type: Double-sided and thumb-turn


• Keying: Keyed alike (one key for both cylinders)


• Material: Brass body; bronze and hardened steel pins; stainless steel springs; steel cam


• Finish: Nickel pearl


• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Security Key Class: 5 (10 pins, 100,000 combinations)


• Durability: 50,000 cycles minimum


• Corrosion Resistance: Class C (-20°C to +80°C)


• Attack Resistance: Class 2 (min. 5/10 min, 40 strikes), Class C per KW/WQ-02


• Warranty: 5 years


• Included Keys: 5 drilled keys


• Included Accessories: key card, fixing screw

Applications

Designed for use in residential and commercial doors equipped with mortise locks. Recommended for environments requiring high-security access control such as apartment complexes, office buildings, hotels, and institutional facilities. Supports use with fire-rated doors, bulk facility renovation, and property management suites seeking single-key convenience and advanced anti-burglary features.

Packaging & Shipping

Secure, tamper-evident packaging includes both cylinder types, 5 drilled keys, key card, fixing screw, and installation manual. Each unit presented in an aesthetic box suitable for bulk distribution or retail display; special OEM or bulk order packaging options available on request.
