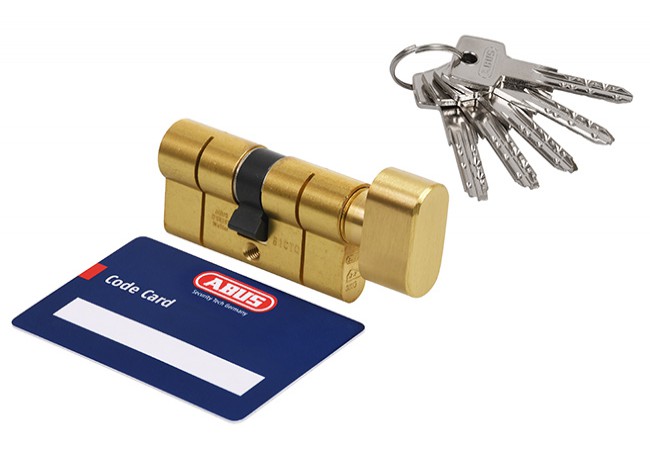

Abus KD10 30g/30 Cylinder Lock With Knob Brass EN 1303 Class 5 Pre-Snap Protection

Product Overview

The Abus KD10 30g/30 brass cylinder lock with knob is an anti-burglary profile cylinder designed for use with all mortise lock types in both residential and commercial doors. It features a high-security emergency function, allowing the cylinder to be operated even if a key is inserted from the opposite side, and is certified to PN-EN 1303:2007 at the highest resistance and durability levels (class C, key security class 5, attack resistance class 2).

A distinctive advantage of the KD10 is the built-in pre-snap security mechanism, which protects the cylinder from breakage attacks?a major procurement risk for high-exposure entrances. This model is well-suited for access control installations in multi-tenant buildings, institutional facilities, and any projects demanding maximum physical security and compliance with stringent European standards.

Key Features

• Pre-snap break protection ? integrated mechanism prevents cylinder breakage attacks


• Emergency function ? cylinder can be turned even with a key on the opposite side, improving access reliability


• Key security class 5 ? 10 pins in 2 rows with 100,000 combinations


• Attack resistance class 2 ? withstands at least 5?10 minutes or 40 strikes per PN-EN 1303:2007


• Drill protection ? reinforced anti-drill elements integrated in body and core


• Anti-picking system ? patented pin and driver system reduces manipulation risk


• Corrosion resistance class C ? fully operational from -20°C to +80°C, suitable for harsh outdoor conditions

Technical Specifications

• Cylinder Length: 30 mm/30 mm


• Material: Brass body; pins and drivers of bronze and hardened steel; steel cam; stainless steel springs


• Keying: 10 pins in 2 rows, 100,000 combinations


• Durability: ?50,000 cycles


• Certification: PN-EN 1303:2007


• Key Security Class: 5


• Attack Resistance Class: 2


• Corrosion Resistance Class: C (?20°C to +80°C)


• Emergency Function: Yes (safe clutch)


• Drill Protection: Yes


• Knob: Integrated


• Included Keys: 5 drilled keys


• Mounting Screw: Included


• Warranty: 5 years

Applications

Suitable for residential, commercial, and institutional doors requiring high security. Recommended for main and apartment doors in multi-unit buildings, public sector facilities, and high-value storage areas. Fully compatible with mortise lock cases and retrofit security door upgrades, particularly where emergency function and certified burglary resistance are specified. Can be used with master key systems on request.

Packaging & Shipping

Each cylinder is individually packed in a sealed box with 5 drilled keys, security card, mounting screw, and installation manual. Tamper-evident packaging ensures product integrity during shipping. Bulk and OEM packaging options are available on request.
