Abus D10NP 30/60 Cylinder Lock Pearl Nickel Emergency Clutch EN 1303 Class 5

Product Overview

The Abus D10NP 30/60 cylinder lock features advanced anti-burglary protection and is certified to PN-EN 1303:2007 1 5 0 0 0 C 5 2 C. Engineered for use with all mortise locks, it operates reliably in demanding commercial and residential settings. Durability exceeds 50,000 cycles and corrosion resistance is rated class C, suitable from -20°C to +80°C.

A distinguishing feature is its secure clutch, enabling emergency function so the cylinder can be operated even if a key is left in the other side. This eliminates critical lockout risks, making the product particularly suited for multi-unit apartment buildings, hotels, and public facilities that require safe access management under all circumstances.

Key Features

• Emergency function clutch ? allows unlocking when key is inserted from opposite side, supporting safe access


• Pre-snap protection ? built-in mechanism prevents cylinder snapping during forced entry attempts


• 10 pin system ? double row design provides 100,000 key combinations for enhanced security


• Anti-picking patent ? precision pins and counterpins increase resistance against picking attacks


• Drill resistant construction ? core components made of hardened steel effectively resist drilling


• Corrosion resistance class C ? reliable use from -20°C to +80°C, suitable for harsh environments


• Certified to PN-EN 1303:2007 ? meets industry security and durability standards

Technical Specifications

• Length: 30/60 mm


• Key Security: Class 5 (10 pins, 100,000 combinations)


• Durability: 50,000 cycles minimum


• Attack Resistance: Class 2 (min. 5/10 min, 40 strikes), Class C (KW/WQ-02)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Material: Brass body, bronze/hardened steel pins, steel cam, stainless springs


• Security Clutch: Emergency function


• Certification: PN-EN 1303:2007


• Guarantee: 5 years


• Finish: Pearl nickel

Applications

Suitable for entrance doors in multi-residential buildings, hotels, office complexes, and public sector facilities. Compatible with all mortise locks and recommended for security upgrades where anti-snap, anti-drill, and emergency access functions are required. Appropriate for environments demanding certified hardware with high durability and resistance to forced entry and corrosion.

Packaging & Shipping

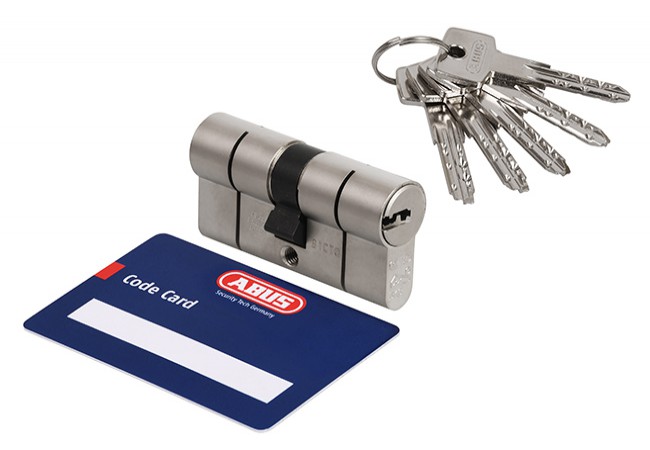

Individually boxed in sealed tamper-proof packaging. Each unit includes 5 drilled keys, code card, mounting screw, and installation instructions. Bulk packaging options for OEM and project procurement available on request.
