Abus KD10 30g/60 Cylinder Lock Nickel Pearl Emergency Function PN-EN 1303:2007 Class 5

Product Overview

The Abus KD10 30g/60 nickel pearl cylinder lock is a high-security anti-burglary cylinder designed for use in mortise locks across residential and commercial settings. Certified to PN-EN 1303:2007 with security class 5 and corrosion resistance class C, it withstands at least 50,000 operating cycles and performs reliably from -20°C to +80°C.

A standout feature of this SKU is the emergency function (secure clutch), which allows operation of the cylinder from one side even when a key is inserted in the other, eliminating common access risks in hotels, office buildings, and managed properties. This makes it particularly suited for bulk procurement by facility managers and locksmiths serving multi-tenant residential complexes or commercial installations requiring advanced access control and anti-burglary protection.

Key Features

• Pre-snap protection ? integrated pre-snap mechanism resists forced breakage attempts on the cylinder


• 10-pin system ? over 100,000 key combinations for enhanced security and master key planning


• Anti-drill and anti-picking ? patented Abus mechanism with hardened pins resists manipulation and drilling


• Corrosion resistance class C ? fully operational in temperature range -20°C to +80°C for harsh environments


• Emergency function ? secure clutch enables operation from one side when a key is present on the other


• Attack resistance class 2 ? withstands at least 40 blows and provides 5?10 minutes resistance per class C KW/WQ-02


• Durability rated ? certified for minimum 50,000 cycles for longevity in high-traffic applications

Technical Specifications

• Length: 30g/60 mm


• Finish: Nickel pearl


• Material: Brass body, hardened steel pins, bronze and stainless steel springs


• Key System: 10 pins in 2 rows, 100,000 combinations


• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Corrosion Resistance: Class C (-20°C to +80°C)


• Attack Resistance: Class 2, KW/WQ-02 Class C


• Key Security: Class 5


• Cycle Life: ?50,000 cycles


• Guarantee: 5 years


• Included Keys: 5 drilled keys

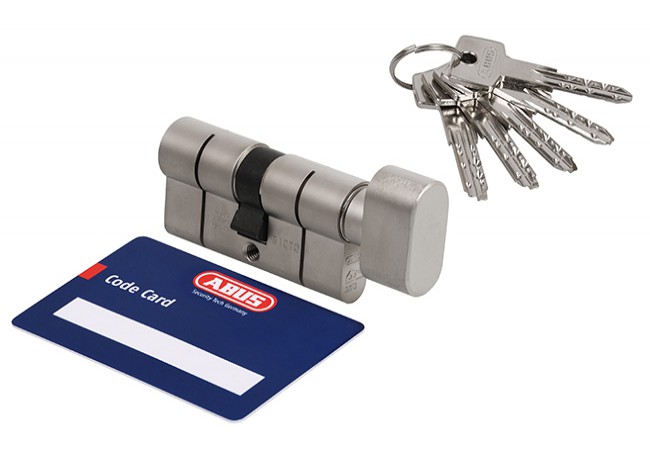

• Accessories: Key card, fixing screw

Applications

Ideal for installation in residential apartment doors, commercial office entryways, and managed property access points requiring premium anti-burglary certification. Suitable for mortise locks, high-traffic doors, and projects demanding master key control and emergency function such as hotels, multi-unit dwellings, and facility management operations.

Packaging & Shipping

Certified tamper-proof packaging. Each unit boxed with 5 drilled keys, code card, fixing screw, installation manual, and official certificates. Bulk and OEM orders ship with sealed protective cartons ensuring integrity of security products.
