Abus KD10 35g/40 Euro Cylinder Brass Class 5 Security Clutch PN-EN 1303:2007

Product Overview

The Abus KD10 35g/40 brass cylinder with knob is an anti-burglary euro-profile cylinder designed for use with all types of mortise locks, featuring advanced security for residential and commercial doors in environments requiring enhanced protection. It carries the PN-EN 1303:2007 certification, reaching class C in durability, key security (class 5, 10 pins), picking resistance, and corrosion resistance, withstanding conditions from -20°C to +80°C.

The primary differentiator is the security clutch (emergency function), which allows operation of the cylinder from one side even if a key is inserted on the opposite side?a critical safeguard for multi-user access or emergency service requirements. This feature reduces lockout and access risks in high-occupancy buildings. Especially suitable for residential developments, office complexes, and public facilities where secure, fail-safe access control is essential.

Key Features

• Certified to PN-EN 1303:2007 ? meets security class C for durability, corrosion, and attack resistance


• Emergency functionality ? secure clutch allows cylinder turning from one side even with a key inside on the other


• Pre-snap break-off protection ? designed to resist cylinder snapping attacks


• 10-pin mechanism ? over 100,000 key combinations for high-security master key systems


• Special anti-picking system ? patented by Abus for increased resistance to picking and manipulation


• Drill protection ? hardened steel and bronze pins defend against drilling attempts


• Tested for at least 50,000 operating cycles ? long-term reliability for frequent use environments

Technical Specifications

• Cylinder Length: 35g/40 mm


• Material: Brass body, hardened steel and bronze pins, stainless steel springs


• Operating Temperature: -20°C to +80°C


• Durability: ? 50,000 cycles


• Key Security Class: 5 (10 pins, ? 100,000 combinations)


• Attack Resistance: Class 2 (40 impacts, 5/10 min attack time)


• Corrosion Resistance: Class C (highest)


• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Knob: Included


• Keys: 5 dimple keys (included)


• Warranty: 5 years

Applications

Used in residential and commercial properties for doors requiring high security and emergency exit capability, including apartment entrances, office suites, and public access doors. Compatible with all standard European mortise locks. Especially relevant where certified security and anti-break-in features are project requirements, such as new building developments, property retrofits, or managed access systems.

Packaging & Shipping

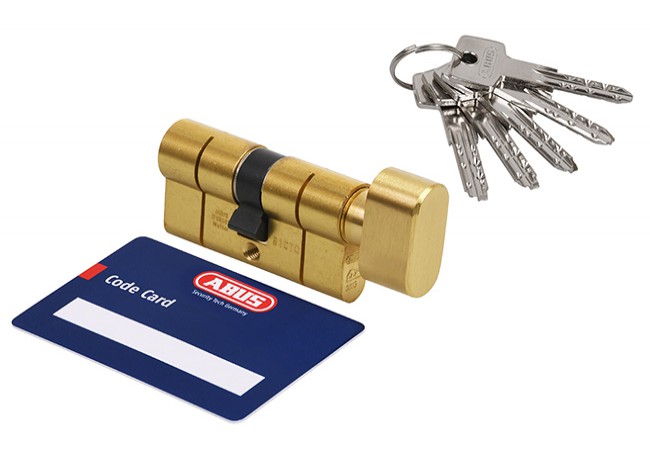

Each cylinder is packed in a factory-sealed box containing the cylinder with knob, 5 precision dimple keys, a fixing screw, a coded key card, and an installation manual. Packaging ensures tamper-evidence for shipment and product integrity.
