Abus KD10 35g/55 Euro Profile Cylinder Brass Emergency Function EN 1303:2007 Class 5

Product Overview

The Abus KD10 35g/55 brass euro profile cylinder with knob is an anti-burglary lock barrel designed for compatibility with all mortise locks. It is certified to PN-EN 1303:2007 with key security class 5, highest attack resistance class 2, and corrosion resistance class C, ensuring suitability for heavy-duty commercial and residential access points exposed to challenging conditions.

What sets this KD10 model apart is the emergency function (safe clutch), allowing the lock to be operated from one side even if a key is inserted from the other. This feature eliminates operational downtime in multi-user environments and enhances security for facility managers overseeing apartment buildings, offices, or public buildings. Recommended for procurement in projects requiring compliance with high anti-burglary standards and user safety, such as managed properties or sensitive premises.

Key Features

• Certified anti-burglary cylinder ? PN-EN 1303:2007 1 5 0 0 0 C 5 2 C standard compliant


• Key security class 5 ? 10 pins, 100,000 key differs for advanced protection


• Attack resistance class 2 ? withstands minimum 5-10 minutes and 40 physical strikes


• Emergency function (safe clutch) ? cylinder can be operated from both sides simultaneously


• Pre-snap break protection ? special groove safeguards against cylinder breaking attempts


• Anti-drill and patented anti-picking systems ? reinforced pins and anti-manipulation design


• Corrosion resistance class C ? suitable for use in environments from -20°C to +80°C

Technical Specifications

• Cylinder Size: 35g/55 mm


• Material: Brass body, bronze and hardened steel pins, stainless steel springs


• Function: Emergency (safe clutch)


• Number of Pins: 10, double-row system


• Key Security: Class 5 (100,000 combinations)


• Attack Resistance: Class 2 (min. 5-10 minutes, 40 hits)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Standard/Certification: PN-EN 1303:2007


• Key Type: Dimple (drilled) keys

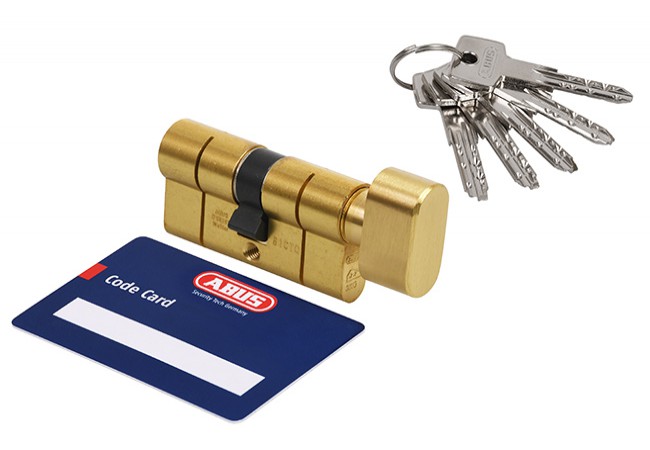

• Accessories Included: 5 keys, security card, fixing screw


• Warranty: 5 years

Applications

The Abus KD10 euro profile cylinder is used in commercial buildings, apartment complexes, public institutions, and high-security residential doors where resistance to forced entry, advanced key control, and emergency access are required. It is ideal for mortise locks, fire-rated doors, and access points exposed to frequent use or harsh environments. Particularly suited for bulk procurement and projects demanding certified security hardware.

Packaging & Shipping

Each cylinder is factory-sealed in a tamper-evident box containing the lock cylinder, 5 dimple keys, security code card, fixing screw, and installation instructions. Standard export packaging maintained for shipment, with bulk options available for larger orders.
