Abus KD10 40g/35 Cylinder Lock Brass Knob 10-Pin Class 5 PN-EN 1303:2007

Product Overview

The Abus KD10 40g/35 brass cylinder lock with knob is designed for high-security applications in residential and commercial settings. Certified to PN-EN 1303:2007 and featuring class C corrosion resistance, this anti-burglary cylinder accommodates all mortise lock types and withstands temperatures from -20°C to +80°C. Its security rating includes class 5 key protection and class 2 attack resistance, supporting at least 50,000 cycles for durability.

Exclusive to this model is the patented anti-picking system, utilizing precisely matched pins and counterpins proven to resist manipulation. This feature minimizes unauthorized access risk and is valued by facilities managers and locksmiths handling high-traffic installations or specifying premium security for institutional or corporate sites. Particularly recommended for bulk procurement in commercial property upgrades or any project requiring a certified security cylinder.

Key Features

• Patented anti-picking system ? matched bronze and hardened steel pins and counterpins validated by independent experts


• Pre-snap break protection ? reduces cylinder fracture risk during attempted forced entry


• Emergency function ? allows operation from one side even if a key is inserted from the other


• 10-pin dual-row key system ? enables 100,000 key combinations for advanced security


• Corrosion resistance class C ? maintains performance from -20°C to +80°C


• Attack resistance class 2 ? resists minimum of 5?10 minutes, 40 strikes per PN-EN 1303:2007


• Durability ? at least 50,000 operational cycles for long service life

Technical Specifications

• Length: 40g/35 mm (measured from cylinder midline)


• Body Material: Brass


• Pin Material: Bronze and hardened steel


• Springs: Stainless steel


• Key System: 10 pins, double row; 100,000 combinations


• Included Keys: 5 drilled keys


• Attack Resistance: Class 2 (PN-EN 1303:2007)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Key Security: Class 5


• Cycles: Minimum 50,000


• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Warranty: 5 years

Applications

Ideal for securing residential apartments, commercial offices, institutional facilities, and storage areas equipped with mortise locks. Especially suitable for fire-rated and security doors requiring high resistance to picking, drilling, and forced entry. Appropriate for bulk installation, facility management replacement programs, and OEM projects seeking certified lock cylinders for demanding environments.

Packaging & Shipping

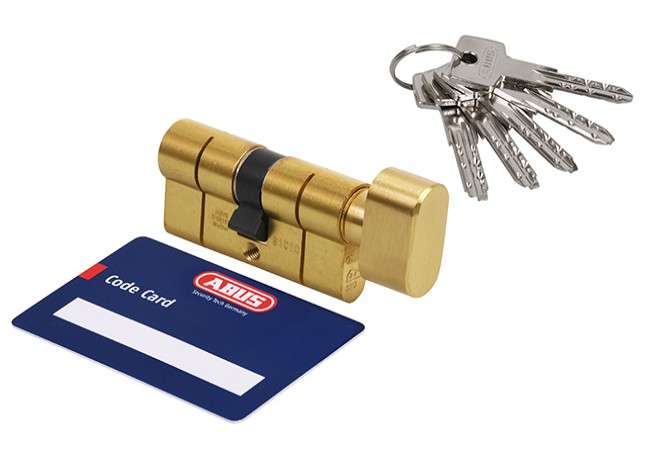

Each cylinder is individually boxed in a sealed, tamper-proof container, including 5 drilled keys, code card, mounting screw, and installation instructions. Bulk orders available with secure palletization and optional custom labeling for OEM clients.
