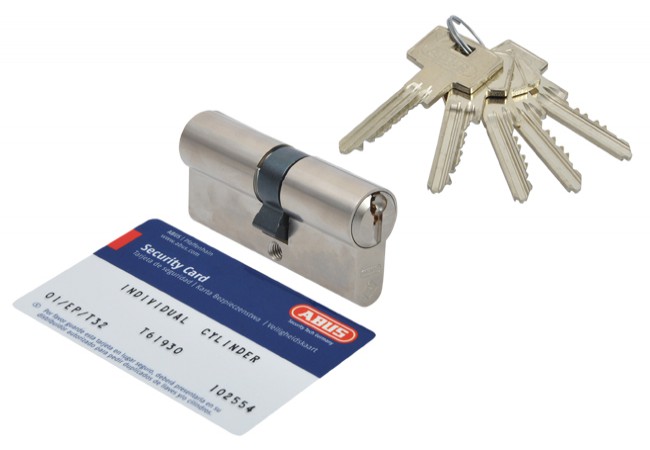

Abus Pfaffenhain Standard Cylinder 45/45 Pearl Nickel EN 1303 6.2 C Clutch Function

Product Overview

The Abus Pfaffenhain Standard cylinder 45/45 in pearl nickel finish is a certified lock cylinder designed for commercial and high-security applications. It is rated to PN-EN 1303:2015-07 (class 6.2 C) for durability, drilling resistance (class B), and corrosion resistance (class C). The product is recommended for use in fire-rated and smoke-control doors and is supplied with 5 paracentric cut keys and a code card.

Its defining feature is the secure clutch function, enabling operation even if a key is inserted on both sides. This eliminates the risk of lockouts?a critical requirement for facilities management in hotels, offices, and multi-tenant buildings. The certified drill and pick resistance, combined with master key system compatibility, makes this cylinder particularly suitable for OEM projects and bulk procurement in property security upgrades.

Key Features

• Secure clutch function ? enables cylinder rotation even when keys are inserted from both sides for emergency access


• Certified to PN-EN 1303:2015-07, class 6.2 C ? meets demanding European standards for security and durability


• Drilling resistance class B ? first and third pins are hardened steel for enhanced core protection


• High corrosion resistance class C ? suitable for harsh environments and exterior doors


• Paracentric key profile ? resists picking, 100,000 key combinations, 6 tumbler protection


• Compatible with fire-rated and smoke-control doors ? meets legal safety requirements


• Master key system ready ? 14 mm core diameter allows complex system integration

Technical Specifications

• Cylinder Size: 45/45 mm


• Finish: Pearl nickel


• Key Type: Paracentric, cut keys (new silver)


• Number of Keys Included: 5


• Certification: PN-EN 1303:2015-07, class 6.2 C


• Drilling Resistance: Class B (5 min. drilling resistance)


• Corrosion Resistance: Class C


• Core Diameter: 14 mm


• Pick Resistance: Multiple centered asymmetric profiles


• Fire Door Compatibility: Yes


• Smoke Door Compatibility: Yes

Applications

Ideal for commercial buildings, hotels, office complexes, multi-tenant residential properties, and institutions requiring high-security lock cylinders. Suitable for fire-rated and smoke-control doors, facilities with master key systems, and bulk procurement for security upgrades or OEM integration.

Packaging & Shipping

Product is delivered in sealed, tamper-proof boxes. Each unit includes 5 cut keys, a code card, mounting screw, and installation accessories. Packaging meets security and export standards for B2B shipments.
