Abus Pfaffenhain Standard Euro Cylinder 45/55 Emergency Clutch Class 6.2C Nickel Pearl

Product Overview

Abus Pfaffenhain Standard 45/55 double euro cylinder is an accredited security lock designed for commercial and multi-residential doors, featuring emergency function for access from both sides. It is certified to PN-EN 1303:2015-07 with class 6 key security, class B attack resistance, and class C corrosion resistance, making it suitable for fire-rated and smoke-control doors.

Distinctive is its emergency clutch function, enabling cylinder operation even when a key is inserted on both sides?eliminating lockout risk for managed-access environments. This feature is particularly valued by facility managers and bulk buyers specifying cylinders for hotels, public buildings, and controlled access installations requiring compliance and resilience against mechanical attack.

Key Features

• Emergency clutch function ? cylinder turns with key inserted on either side for access continuity


• Certification PN-EN 1303:2015-07 ? meets class 6 key security, class B drill resistance, class C corrosion resistance


• Fire and smoke door approved ? compliant with fire-rated and smoke-control door requirements


• Six pin tumblers ? 100,000 possible key combinations for high security applications


• Hardened steel pins ? first and third pin provide extra drill resistance


• Paracentric key profile ? enhanced pick resistance and secure key management


• Supplied with 5 nickel-silver grooved keys ? durable for heavy use environments

Technical Specifications

• Cylinder Length: 45/55 mm (total 100 mm)


• Profile: Euro double


• Key Security Class: 6 (100,000 combinations, 6 pins)


• Attack Resistance Class: B (5/10 min drill resistance)


• Corrosion Resistance Class: C (highest)


• Core Diameter: 14 mm


• Certification: PN-EN 1303:2015-07


• Fire-Door Approval: Yes


• Keys Supplied: 5 (nickel-silver, paracentric profile)

Applications

Used in commercial, institutional, multi-residential and hotel doors ? especially where fire-, smoke-rated, or managed-access locks are required. Approved for use in certified fire and smoke-control doors. Ideal for bulk procurement by facility managers, property developers, and OEM master key systems demanding high security and emergency access function.

Packaging & Shipping

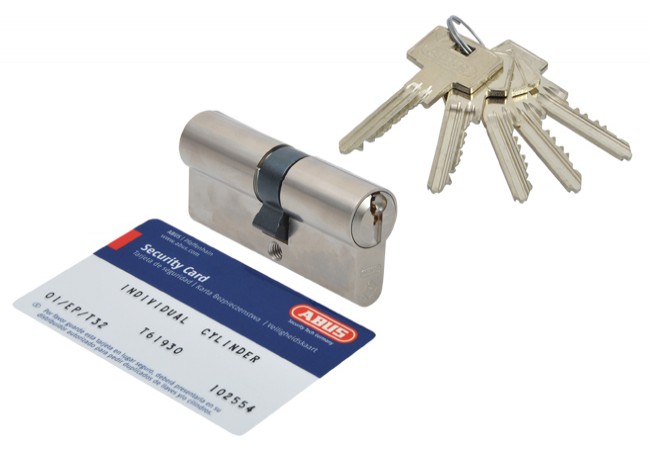

Each unit is packaged in a sealed box containing cylinder, 5 grooved keys, code card, fixing screw, and user instructions. Tamper-evident packaging ensures uncompromised security and full compliance on delivery.
