Gerda EVO 35/35 Euro Profile Lock Cylinder 12-Pin PN-EN 1303 Class 5 Satin Nickel

Product Overview

The Gerda EVO 35/35 cylinder is an anti-burglary Euro profile lock cylinder for interior and exterior doors, designed for high-security residential and commercial entrances and fire-rated assemblies. Certified with PN-EN 1303:2015-07 and rated mechanical class 5, corrosion resistance class C, and thermal class B (-20°C to +80°C), it is well-suited for demanding conditions and features two hardened nickel-plated anti-drill pins and anti-bumping protections. Installs in standard mortise lockcases in multi-family buildings, offices, and technical rooms.

A key standout is its advanced, patent-protected key system with 12 pins (9 in two rows, 3 side pins) providing over 9.3 million possible key code combinations. This significantly reduces the risk of unauthorized key duplication and ensures compliance with strict facility access control regimes. Recommended for professional procurement in projects requiring certified intrusion resistance, high-frequency operation, and compliance with fire safety and anti-tampering standards, such as public buildings and access control systems.

Key Features

• Certified burglar resistance ? PN-EN 1303:2015-07 class 5, mechanical class C/B


• Advanced key system ? 12 tumbler pins (9 front, 3 side), over 9,300,000 code combinations


• Anti-drill and anti-bumping security ? two hardened nickel-plated steel pins, anti-lockpicking design


• High mechanical endurance ? tested for a minimum of 100,000 cycles


• Corrosion resistance ? certified class C, suitable for exterior or humid locations


• Wide operating temperature ? class B, functional from -20°C to +80°C


• Supplied with 5 milled keys ? new silver alloy, wear-resistant

Technical Specifications

• Cylinder Length: 35/35 mm


• Material: Brass body with nickel satin finish


• Key Security: 12 pins (9 in two rows + 3 side), 9,300,000 combinations


• Drill Protection: 2 hardened nickel-plated steel pins


• Mechanical Durability: 100,000 cycles minimum


• Temperature Resistance: -20°C to +80°C (class B)


• Corrosion Resistance: Class C


• Certification: PN-EN 1303:2015-07 1 6 0 0 0 B 5 C


• Break-in Resistance: Class B per KT/402/IMP/2014


• Attack Resistance: Class C (3/5 minutes drilling/mechanical)


• Color: Satin Nickel


• Keys Supplied: 5 (milled, new silver alloy)

Applications

Ideal for entrance doors in multi-family residential, office, and institutional buildings, and suitable for use in fire-resistant door assemblies and vulnerable access points. Supports access control requirements in public, educational, healthcare, and critical infrastructure facilities. Can be used where prolonged durability (100,000 cycles), corrosion resistance, and anti-burglary ratings are required.

Packaging & Shipping

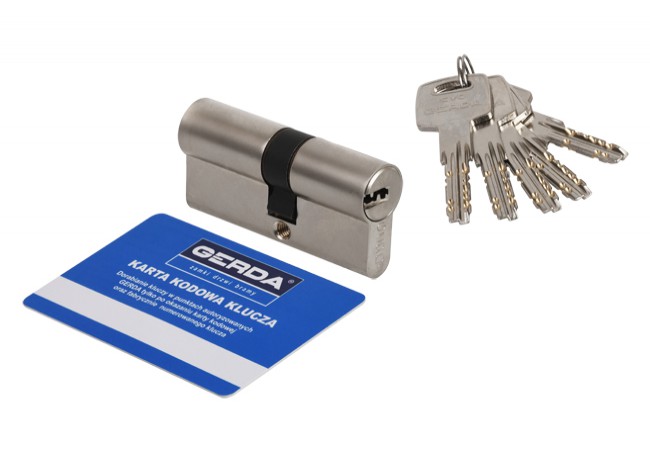

Aesthetic box packaging. Each unit includes the cylinder, 5 milled wear-resistant keys, mounting screw, and installation instructions. Versions with blister packaging are also available for bulk or retail supply.
