Gerda EVO 35g/30 Cylinder Lock Satin Nickel Class 5 12-Pin Anti-Burglary Certified

Product Overview

The Gerda EVO 35g/30 satin nickel cylinder lock is a certified anti-burglary insert designed for fire-rated door joinery. It meets PN-EN 1303:2015-07 and ITB fire joinery evaluation, featuring advanced protection against bumping and lockpicking attacks due to its unique key pattern and mechanism. Tailored for installers and contractors securing residential and commercial entrances under demanding environmental conditions, its robust construction ensures mechanical durability and corrosion resistance.

What distinguishes this specific Gerda EVO model is its Class 5 key security rating, achieved by a 12-pin locking system (9 pins in two rows, 3 lateral), offering up to 9,300,000 unique key combinations. This mitigates risks of unauthorized duplication and manipulation, streamlining compliance for B2B buyers in top-security projects. Particularly suited for fire-rated door hardware procurement in multi-family housing, public facilities, and specification-driven projects requiring certified lock solutions.

Key Features

• Certified PN-EN 1303:2015-07 ? meets European security and durability standards


• Class 5 key security ? 12 pins, 9,300,000 possible key combinations prevent unauthorized duplication


• Anti-bumping and anti-picking ? innovative pins and key profile resist common break-in methods


• Hardened steel anti-drill pins ? protect against mechanical drilling attacks (Class C resistance)


• Corrosion resistant brass body ? suitable for challenging environments and long-term installation


• Temperature range -20°C/+80°C ? supports both unheated and warm interior applications


• Fire joinery approval ? compatible with fire-rated doors per ITB evaluation

Technical Specifications

• Cylinder Length: 35g/30 mm


• Material: Brass body, satin nickel finish


• Key Security Rating: Class 5 (12 pins, double row)


• Number of Key Combinations: 9,300,000


• Mechanical Durability: Minimum 100,000 cycles


• Anti-drill Protection: Class C (3/5 min resistance)


• Temperature Resistance: -20°C to +80°C


• Corrosion Resistance: High (material: new silver keys, brass cylinder)


• Certification: PN-EN 1303:2015-07


• Fire Joinery Evaluation: ITB


• Included Keys: 5 (drilled, new silver)


• Finish: Satin nickel

Applications

Used in fire-rated doors and joinery, the Gerda EVO 35g/30 is suitable for entrances in residential apartment blocks, commercial buildings, public sector facilities, and high-security zones. Approved for installation in fire joinery per ITB, it covers doors where certified security, anti-burglary protection, and compliance to PN-EN 1303 are mandatory. Also recommended for bulk procurement by property managers and institutional clients prioritizing secure and durable lock solutions.

Packaging & Shipping

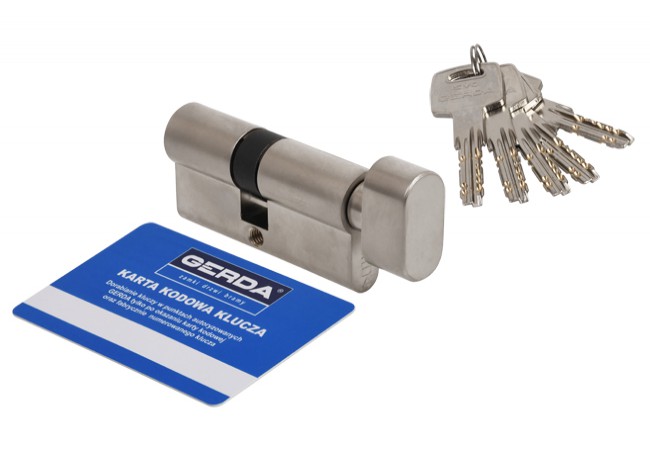

Each unit is packed in an aesthetic box and includes the cylinder body, 5 drilled keys made of wear-resistant new silver, a mounting screw, and installation instructions. Bulk and OEM packaging options may be available for larger orders.
