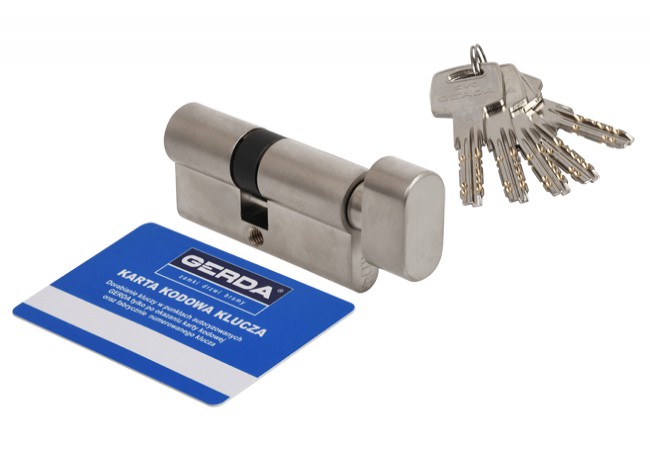

Gerda EVO 45g/30 Lock Cylinder Nickel Satin Keyed Knob EN 1303 Class 5 Fire Rated

Product Overview

The Gerda EVO 45g/30 nickel satin cylinder with knob is an anti-burglary lock cylinder suitable for residential and commercial doors requiring high security and fire-rated performance. Featuring certification to PN-EN 1303:2015-07 and an ITB fire door assessment, it is engineered for environments demanding robust intrusion resistance and compliance with European safety standards.

This cylinder distinguishes itself with anti-bumping and anti-drilling protection, incorporating two hardened steel pins in the body and advanced key technology with 12 tumblers. Such features provide B2B buyers with enhanced assurance against common attack methods and key manipulation. It is particularly suited for bulk procurement in multi-apartment residential construction and commercial facilities requiring certified lock hardware.

Key Features

• Certified PN-EN 1303:2015-07 ? complies with European security and durability standards


• Anti-bumping and anti-picking ? innovative key profile and mechanical protections resist manipulation


• Hardened anti-drill pins ? two steel pins in cylinder body protect against drilling attempts


• 12-tumbler key system ? increased key security with 9 tumblers in two rows and 3 side tumblers


• High durability ? tested for a minimum of 100,000 mechanical cycles


• Corrosion-resistant brass body ? suited for long-term exposure in exterior and interior installations


• Temperature resistance -20°C to +80°C ? class B performance for demanding environments

Technical Specifications

• Length: 45/30 mm


• Finish: Nickel satin


• Key Security Class: 5 (12 tumblers, 9,300,000 combinations)


• Attack Resistance Class: C (resists drilling for 3/5 min, mechanical attacks)


• Burglary Resistance: B (medium, per KT/402/IMP/2014)


• Fire Door Assessment: ITB compliant


• Certification: PN-EN 1303:2015-07


• Body Material: Brass


• Temperature Resistance: -20°C to +80°C


• Mechanical Durability: min. 100,000 cycles


• Included Keys: 5 (drilled, new silver alloy)


• Mounting: Screw included


• Available Finishes: Nickel satin


• Packaging Options: Box, blister

Applications

Intended for installation in residential apartments, commercial buildings, and fire-rated door systems where certified security and durability are required. Suitable for applications in multi-tenant housing, public sector facilities, and environments needing protection against advanced intrusion techniques. Compatible with wooden and metal door assemblies, especially in bulk installations for new construction or refurbishment projects.

Packaging & Shipping

Unit is packaged in an aesthetic box, including the lock cylinder, 5 drilled keys, mounting screw, and installation manual. Bulk and blister packaging variants are available for OEM or large-scale procurement.
