LOB WP600 DRAGON XT Cylinder Lock 35/45mm Nickel EN 1303 Class D Anti-Drill

Product Overview

Wkładka bębenkowa LOB WP600 DRAGON XT 35/45 nikiel klasa 6 D is an anti-burglary cylinder lock used in commercial and residential doors requiring high mechanical security. Certified to PN: EN 1303:2015-07 and tested by the Institute of Precision Mechanics in Warsaw, it meets demanding durability and corrosion resistance requirements. Suitable for use in fire-rated door assemblies, this lock operates reliably between -20°C and +80°C, offering class 6 durability and class C corrosion resistance.

The key distinguishing feature of this model is its class D mechanical attack resistance, offering 5-10 minutes defense against drilling and forced entry. This eliminates procurement risk for facilities managers and OEM buyers needing certified high-security hardware for access control and fire protection systems. Particularly recommended for bulk installation in commercial offices, apartment complexes, and facilities requiring audit-grade lock security.

Key Features

• Class 6 durability ? minimum 100,000 cycles as certified by EN 1303:2015-07


• Class C corrosion resistance ? performs reliably at -20°C to +80°C in demanding environments


• Class D attack resistance ? resists drilling and mechanical forced entry for 5-10 minutes


• Key security class 6 ? six pins, up to 100,000 possible key combinations prevents unauthorized duplication


• Anti-drill hardened pins ? strengthened cylinder core for enhanced burglary protection


• 15 Nm torque resistance ? withstands high-force manipulation without compromise


• Approved for fire-rated door assemblies ? meets requirements for secure installation in fire control systems

Technical Specifications

• Cylinder Length: 35/45 mm


• Material: Nickel


• Certification: PN: EN 1303:2015-07


• Classification: 1 6 0 B 0 C 6 D


• Durability Class: 6 (minimum 100,000 cycles)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Key Security Class: 6 (6 pins, 100,000 combinations)


• Attack Resistance: Class D (5-10 min. drilling/mechanical)


• Torque Resistance: 15 Nm


• Fire Door Compatibility: Approved


• Keys Included: 4 cut keys


• Accessories Included: Mounting screw, code card

Applications

Used in commercial and residential door security, including fire-rated doors, office buildings, apartment complexes, and industrial facilities demanding certified high-security locks. Suitable for OEM projects and bulk procurement where audit-grade tested lock cylinders are required. Compatible with access control systems needing physical locking in high-traffic or sensitive environments.

Packaging & Shipping

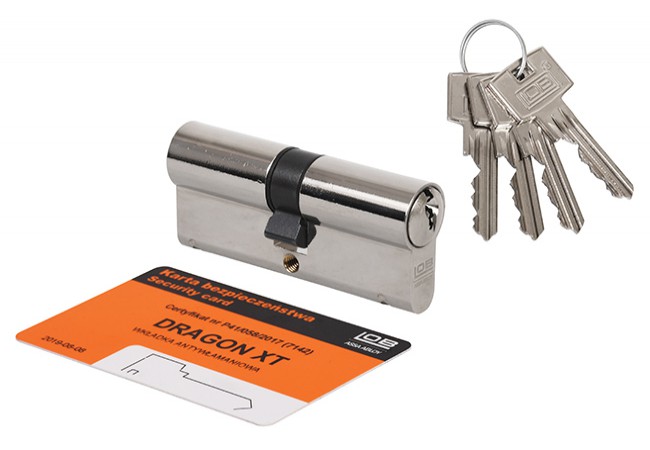

Each lock is delivered in a sealed box containing the cylinder, four cut keys, a mounting screw, and a code card. The packaging is tamper-evident to guarantee shipment integrity. Bulk orders are available with individual unit packaging for each cylinder.
