Abus D10+KD10MM Cylinder Set 30/40+40g/30 Brass PN-EN 1303 Class 5.2 Emergency Function

Product Overview

The Abus D10+KD10MM cylinder set (sizes 30/40 + 40g/30) is a high-security lock cylinder kit constructed from brass, designed for installation in mortise locks across residential and commercial door systems. Both the double-sided cylinder and knob cylinder operate with the same drilled key and are certified to PN-EN 1303:2007, class 5.2, providing tested resistance against forced entry and corrosion (class C, -20°C to +80°C).

A distinguishing feature of this set is the integrated emergency function clutch, allowing key operation from either side even if a key is inserted on the opposite side. This reduces security risks during emergencies and suits multi-user environments such as office buildings or apartment blocks. The product is recommended for bulk procurement in security-sensitive projects requiring guaranteed certified lock hardware and advanced anti-picking protection.

Key Features

• Emergency function clutch ? enables operation from both sides even if a key is present, supporting safety protocols


• Certified to PN-EN 1303:2007 ? complies with stringent European security and durability standards


• Pre-snap protection ? resists cylinder breaking attacks, minimizing forced entry risk


• 10 pin tumbler system ? offers up to 100,000 key combinations for increased security


• Anti-drill protection ? incorporates hardened steel elements to withstand mechanical attacks


• Corrosion resistance class C ? suitable for installations from -20°C to +80°C environments


• Anti-picking system ? patented pin and counter-pin arrangement increases defense against manipulation

Technical Specifications

• Configuration: Double-sided cylinder + knob cylinder


• Key System: Same key for both cylinders (drilled key)


• Pin System: 10 pins in 2 rows


• Key Combinations: Up to 100,000


• Cycles Tested: Minimum 50,000


• Certifications: PN-EN 1303:2007 class 5.2


• Attack Resistance: Class 2 (min. 5/10 min, 40 hits)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Snap Resistance: Pre-snap function


• Material: Brass (body), Bronze and hardened steel (pins), Stainless steel (springs)


• Warranty: 5 years

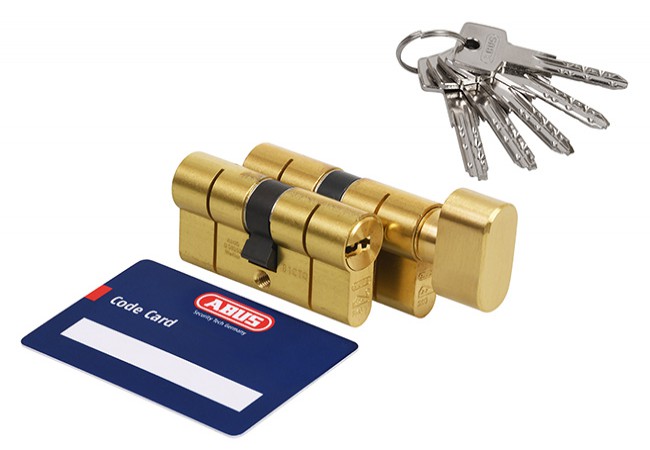

• Accessories Included: 5 drilled keys, code card, fixing screw


• Sizes: 30/40 + 40g/30 (cylinder lengths)

Applications

Used in mortise locks for residential buildings, office complexes, apartment blocks, and facilities requiring certified anti-burglary hardware. Suitable for security doors, main entrances, and doors in environments exposed to weather or multiple users, where emergency access and high resistance to drilling, picking, and corrosion are essential.

Packaging & Shipping

Product is packed in sealed, tamper-evident boxes containing the cylinder set, 5 drilled keys, code card, fixing screw, and installation guide. Bulk packaging options are available for project orders.
