Abus D10+KD10MM Cylinder Set Brass 30/40mm Keyed Alike Emergency Function Class 5

Product Overview

The Komplet wkładek Abus D10+KD10MM 30/40 + 30g/40 brass cylinder set is an anti-burglary lock insert set designed for compatibility with all mortise locks in residential and commercial buildings. Both the double-sided cylinder and the knob cylinder open with the same drilled key, streamlining access management. The product is certified to PN-EN 1303:2007, with key security class 5 and corrosion resistance class C, rated for operation from -20°C to +80°C and a service life of at least 50,000 cycles.

The standout feature is the emergency function coupling built into each cylinder, enabling operation even if a key is inserted on the opposite side. This eliminates lockout risk for facility managers or tenants, enhancing security and convenience while supporting compliance with emergency egress regulations. It is particularly well-suited for multi-unit residential complexes, property management bulk deployments, and commercial office installations requiring unified access and high anti-burglary protection.

Key Features

• Emergency function ? lock operates even if key is inserted from opposite side, preventing lockout situations


• Pre-snap protection ? integrated security feature protects against cylinder breakage attacks


• Class 5 key security ? 10 tumbler pins in two rows generate 100,000 key combinations


• Corrosion resistance Class C ? operable from -20°C to +80°C for harsh environments


• High attack resistance ? meets class 2 anti-burglary (min. 5/10 min, 40 strikes) and KW/WQ-02 class C


• Anti-picking system ? patented matched pins and counter pins resist picking attempts


• Brass, bronze and hardened steel ? cylinder and internal parts for high durability and long service life

Technical Specifications

• Cylinder Type: Double-sided and knob cylinder (set)


• Material: Brass body, bronze and hardened steel pins, stainless steel springs


• Key Security: Class 5 (10 tumbler pins, 100,000 combinations)


• Attack Resistance: Class 2 (min. 5/10 minutes, 40 strikes)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Cycles: ?50,000


• Certification: PN-EN 1303:2007


• Warranty: 5 years


• Included Keys: 5 drilled keys


• Dimensions: 30/40 mm (double-sided), 30/40 mm (knob cylinder)

Applications

Used in residential buildings, apartment complexes, commercial offices, and managed properties where anti-burglary protection and unified access are critical. Compatible with all mortise lock types. Suitable for fire doors, security entrances, property management bulk installations, and projects requiring emergency cylinder function and certified burglary resistance.

Packaging & Shipping

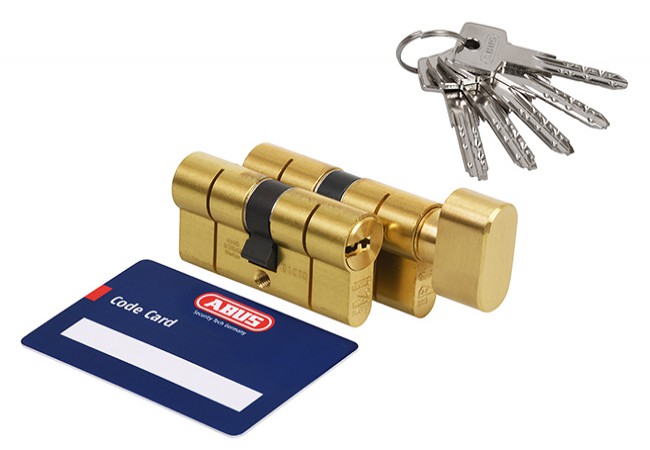

Each set is packed in a factory-sealed box with printed branding. Package includes one double-sided cylinder, one knob cylinder, five drilled keys, a code card, mounting screw, and installation instructions. Certified tamper-proof packaging assures delivered quality and unused condition.
