Abus D10NP 45/45 Euro Profile Cylinder Class 5 Emergency Function Pearl Nickel

Product Overview

The Abus D10NP 45/45 Euro profile cylinder is a high-security insert for mortise locks, intended for professional use in residential and commercial buildings requiring certified burglary and attack resistance. It carries PN-EN 1303:2007 certification with security class 5, attack resistance class 2, and corrosion resistance class C, offering minimum durability of 50,000 cycles and proven resistance from -20°C to +80°C.

What sets this cylinder apart is the key emergency function, allowing operation from one side even if a key is inserted on the other, plus pre-snap protection against breakage. This eliminates lockout risks in multi-user access points and ensures compliance with modern safety requirements. Recommended for property managers, access control integrators, and bulk procurement for large-scale residential or institutional projects.

Key Features

• Certified to PN-EN 1303:2007 ? security class 5, attack resistance class 2, corrosion resistance class C


• Emergency function ? cylinder operable from one side even with a key inside on the opposite side


• Pre-snap breakage protection ? reduces risk of forced entry via lock snapping


• 10 tumbler system ? 100,000 key combinations for advanced key protection


• Antipicking system ? patented Abus mechanism with matched pins and counterpins


• Durability ? tested to at least 50,000 opening cycles


• Brass body, bronze and hardened steel pins ? corrosion-resistant to -20°C/+80°C

Technical Specifications

• Type: Euro profile cylinder


• Size: 45/45 mm


• Security Class: 5 (PN-EN 1303:2007)


• Attack Resistance: Class 2 (5/10 min, 40 hits)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Key Protection: 10 tumbler, 2-row, 100,000 combinations


• Emergency Function: Yes


• Material (Body): Brass


• Material (Pins): Bronze and hardened steel


• Material (Springs): Stainless steel


• Patented Antipicking: Yes


• Durability: Minimum 50,000 cycles


• Finish: Pearl nickel


• Warranty: 5 years


• Included Keys: 5 drilled keys

Applications

Suitable for internal and external doors in residential, commercial, and institutional settings. Recommended for use with certified mortise locks in apartment blocks, office complexes, schools, and multi-family housing. Compliant with fire safety doors, emergency exits, and access control points requiring anti-snap, antipick, and certified key protection features. Well-suited for bulk installation, property management upgrades, and OEM security systems.

Packaging & Shipping

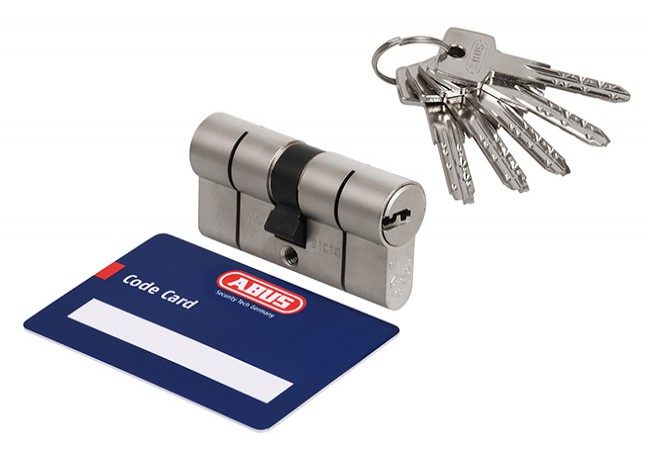

Each unit comes in a sealed branded box containing the cylinder, five drilled keys, a code card, and mounting screw. Tamper-evident packaging ensures full security compliance. Bulk or OEM packaging options available for large procurement.
