Abus D10NP 55/55 Cylinder Lock PN-EN 1303:2007 Emergency Function Pearl Nickel

Product Overview

The Abus D10NP 55/55 cylinder lock is an anti-burglary insert, suitable for use with all mortise locks in residential and commercial door systems. Certified to PN-EN 1303:2007, it delivers high security standards including resistance to drilling, picking, and snap attacks. Rated for at least 50,000 cycles with corrosion resistance up to class C (-20°C to +80°C), it is engineered for demanding environments that require reliable access control.

Its standout feature is the integrated emergency function (safe coupling), which allows the cylinder to be operated from one side even if a key is inserted from the other. This minimizes risks in access-critical scenarios, such as in hotels or multi-family housing, by ensuring entry is always possible. Recommended for facility managers, bulk procurement for secure door systems, and compliant contracting in certified security installations.

Key Features

• Emergency function ? cylinder can be operated even when a key is inserted on the opposite side


• Pre-snap security ? integrated mechanism protects against cylinder snapping during forced entry


• 10 tumbler system ? two rows provide up to 100,000 unique key combinations for class 5 key security


• Anti-drilling protection ? hardened steel pins and counter-pins prevent drilling attacks


• Corrosion resistance class C ? operates reliably from -20°C to +80°C in harsh conditions


• Anti-picking system ? patented mechanism with matched size pins and counter-pins verified by experts


• Certified PN-EN 1303:2007 ? meets European standards for durability and security

Technical Specifications

• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Durability: Minimum 50,000 cycles


• Key Security: Class 5 (10 tumbler system, 100,000 combinations)


• Attack Resistance: Class 2 (min. 5/10 minutes, 40 hammer blows), Class C per KW/WQ-02


• Corrosion Resistance: Class C (-20°C to +80°C)


• Material: Brass body, bronze and hardened steel pins, steel cam, stainless springs


• Finish: Pearl nickel


• Cylinder Length: 55/55 mm


• Keys Included: 5 drilled keys


• Warranty: 5 years


• Accessories Included: Key card, fixing screw

Applications

Designed for use in high-security residential, hotel, office, and multi-family buildings, the Abus D10NP 55/55 cylinder is compatible with all mortise lock systems. Suitable for installations requiring certified security against drilling, snapping, and picking, as well as reliable emergency access. Ideal for bulk specification in new construction, renovations, and facility upgrades with compliance to European security standards.

Packaging & Shipping

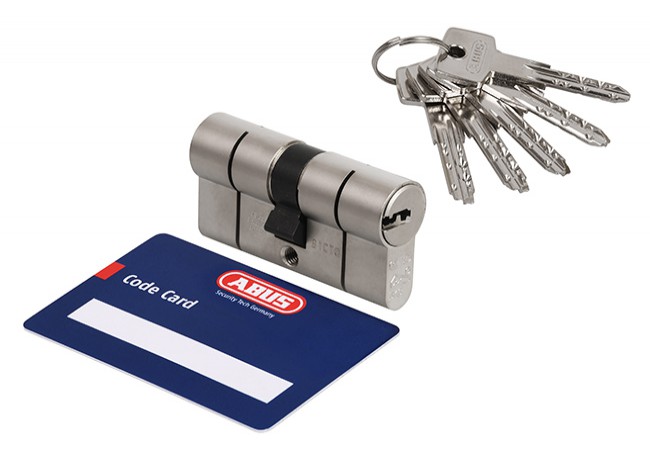

Each unit is supplied in a sealed box ensuring tamper-proof delivery and includes the cylinder, 5 drilled keys, a key card, fixing screw, and installation instructions. Bulk packaging for OEM and large orders available on request.
