Abus KD10 30g/40 Euro Cylinder Lock Brass Knob Anti-Picking PN-EN 1303 Class 5.2

Product Overview

Abus KD10 30g/40 brass cylinder lock with knob is a high-security Euro profile cylinder suitable for use with all standard mortise locks in residential and commercial buildings. It is PN-EN 1303:2007 certified, offering corrosion resistance class C and durability of at least 50,000 cycles, making it appropriate for demanding environments where strong anti-burglary protection is required. Security level 5.2 ensures top-tier resistance against forced entry and manipulation.

What distinguishes this cylinder is its patented anti-picking system, utilizing precision-matched bronze and hardened steel pins with a uniquely designed key profile. This feature eliminates the risk of lock picking even in high-risk installations, providing added peace of mind to facility managers and property owners. It is particularly suited for bulk procurement in multi-unit residential, office, or institutional projects where certified anti-burglary hardware is mandated.

Key Features

• Emergency function ? allows operation from both sides even if a key is inserted on the opposite side


• Patented anti-picking system ? precision bronze and hardened steel pins for advanced manipulation resistance


• Pre-snap break protection ? dedicated mechanism prevents snap attacks and fracture of the cylinder


• Corrosion resistance class C ? withstands exposure from -20°C to +80°C


• Key security class 5 ? 10 pins in 2 rows, 100,000 combinations for high security


• Attack resistance class 2 ? survives 5/10 minutes of direct assault, up to 40 hammer blows


• 50,000 cycle durability ? meets extended service life needs in heavy use environments

Technical Specifications

• Cylinder Length: 30 mm/40 mm


• Material: Brass body, bronze/hardened steel pins, stainless springs


• Key Security: Class 5 (10 pins, 2 rows, 100,000 combinations)


• Corrosion Resistance: Class C, -20°C to +80°C


• Attack Resistance: Class 2 (minimum 5/10 minutes resistance, 40 blows)


• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Pre-Snap Protection: Yes


• Emergency Function: Yes


• Cycle Durability: 50,000 cycles


• Included Keys: 5 drilled keys


• Warranty: 5 years

Applications

Ideal for high-security doors in residential apartment complexes, office buildings, public institutions, healthcare facilities, and areas requiring certified anti-burglary hardware. Compatible with all standard mortise locks and suitable for fire-rated, emergency doors, and multi-point lock assemblies. Preferred for bulk procurement where security class, manipulation resistance, and durability are project requirements.

Packaging & Shipping

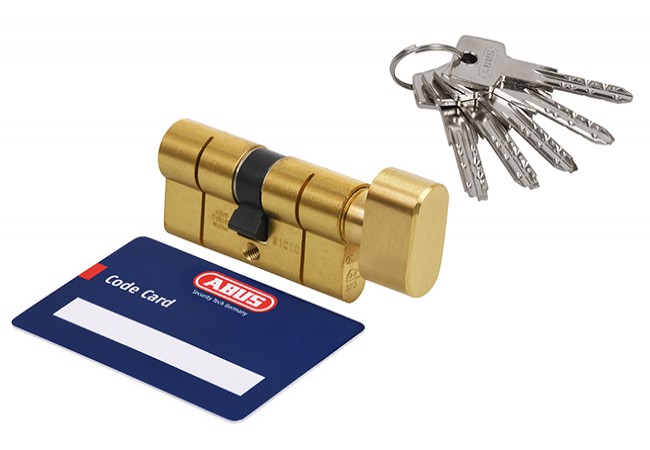

Each cylinder lock is supplied in a factory-sealed aesthetic box, including 5 drilled keys, a key code card, mounting screw, and installation manual. Bulk shipments available for large orders, ensuring all units retain original tamper-evident packaging.
